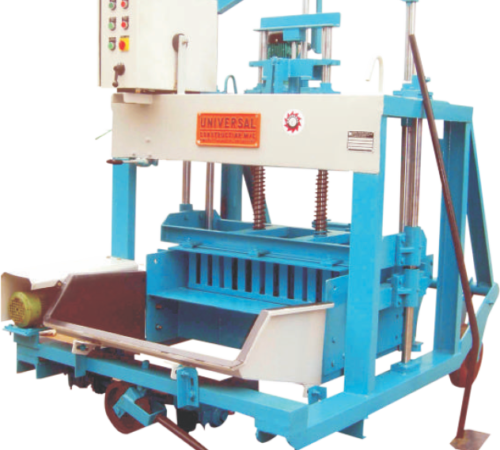

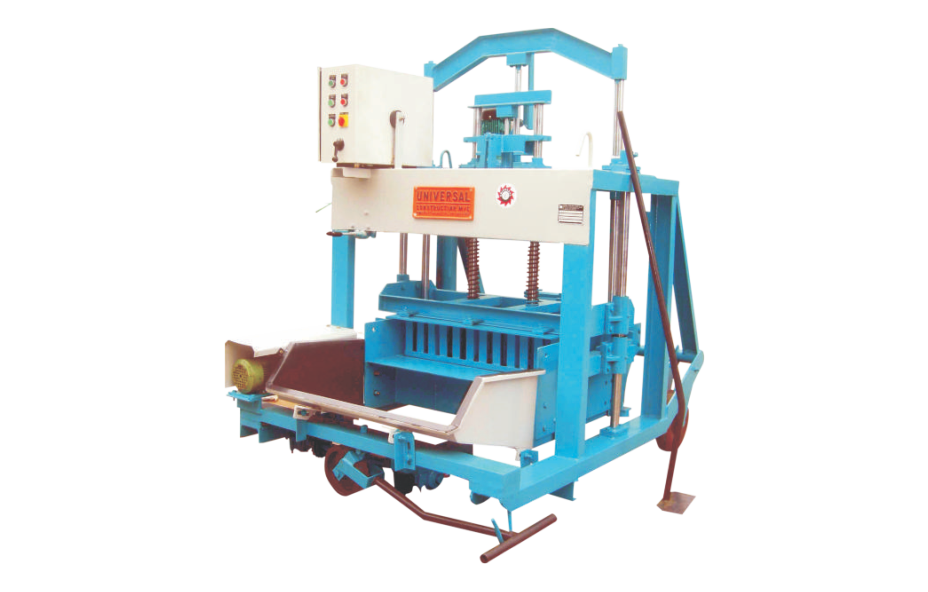

This is a powerful block making machine that is equipped with a hydraulic system to lay out 3200 blocks per shift. Specifications for the machine are as mentioned below.
Specification Details
| Moulding Area | 600 X 800 X 250 mm. |
| Standard Block Height | 200 mm. |
| Cycle time | 90 Sec. |
| Number of Cycle / Hr | 40 |
| Number of Blocks / Hr. | 400. |
| Pump Motor | 3 H.P. |
| Vibrator Motor | 2 H.P. |
| Travel Motor | 0.5 H.P. |
| Power Supply | 415 V, 3-Phase, 50 Hz. |
| Dimension (L X W X H) ) | (1385 X 1892 X 1687) mm. |
